PVC Coated Welded Mesh Welded Cage Wire Poultry Netting
Welded Wire Mesh is made by spot welding high-quality low-carbon steel wire, and
then undergoes surface passivation and plasticizing treatments such
as cold galvanizing (electro-galvanizing), hot-dip galvanizing, and
PVC coating. This results in a smooth mesh surface, uniform mesh
size, firm weld points, good local machining performance,
stability, good weather resistance, and excellent corrosion
resistance.
Welded Wire Mesh Application Scope: Protective structures, civil engineering,fences and
isolation,equipment protection, chemical and marine engineering,
energy and municipal affairs, indoor and outdoor decoration, crack
prevention and insulation.
Galvanized Welded wire mesh technology using welded with galvanized wire.
Welded wire mesh surface treatment : including electro-galvanized,hot dipped galvanized or PVC coated.
Our Welded Mesh welded securely, with uniform mesh,the mesh surface
is flat, and the protective performance is strong.
Support customization:It can be customized according to customer
needs, with multiple specifications available, and the quality is
guaranteed.
| Specification List of Welded Wire Mesh |
| Opening | Wire Diameter<BWG> |
| In inch | In metric unit(mm) |
| 1/4”x 1/4” | 6.4mmx 6.4mm | 22,23,24 |
| 3/8"x3/8" | 10.6mmx 10.6mm | 19,20,21,22 |
| 1/2"x1/2" | 12.7mm×12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8"x5/8" | 16mmx16mm | 18,19,20,21, |
| 3/4"x3/4" | 19.1mmx 19.1mm | 16,17,18,19,20,21 |
| 1"x 1/2" | 25.4mmx 12.7mm | 16,17,18,19,20,21 |
| 1-1/2”×1-1/2” | 38mmx 38mm | 14,15,16,17,18,19 |
| 1"x2" | 25.4mmx 50.8mm | 14,15,16 |
| 2"x2" | 50.8mmx 50.8mm | 12,13,14,15,16 |

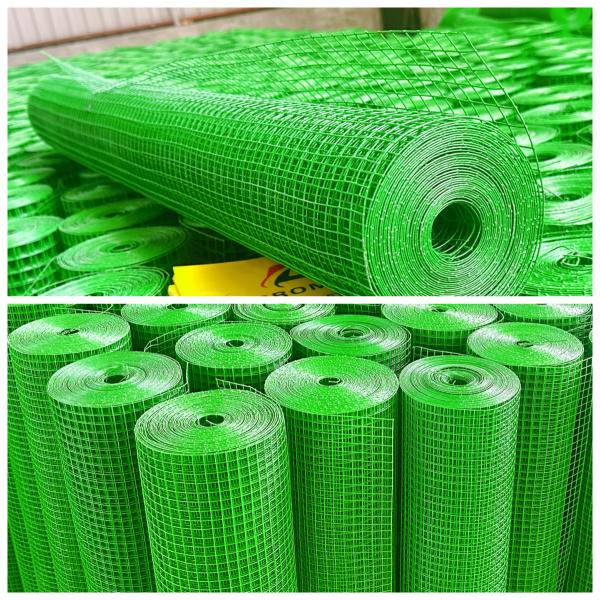

Welded Wire Mesh Product Display
Packing:in waterproof paper in rolls.Custom packing available at
request.
Products can be customized according to customer
requirements,Welcome feel free to inquire.
